Panel Systems

Matching the colours and finishes of the cubicle systems, Lam-Art’s panel products are the ideal companion for the toilet and shower components.

An Integrated Plumbing System (IPS) is essential in all washrooms to conceal pipes and services. The demountable panels allow easy and safe access for maintenance and repair. Any architectural features such as columns and pilasters can be accommodated.

Our panels are available in Solid Grade Compact Laminate and Moisture Resistant Chipboard Panels. The panels can be fitted as a solid wall, and we can also combine shadow gap detail to provide an alternative finish.

We also provide the FlexiPanel® range of wallboards which are joined by aluminium extrusions and come in a selection of finishes.

Another excellent and relevant panelling system we are pleased to supply is BioClad ®. Matching BioClad’s reputation for delivering quality, Lam-Art offers BioClad’s portfolio of innovative antimicrobial, hygienic cladding for the health, food, education, leisure and pharmaceutical sectors. Incorporating BioCote® technology, the cladding reduces bacteria and microbes to provide a fully sanitary working environment, keeping everyone safe, whatever the surroundings.

PANEL COMPOSITION:
13mm Solid Grade Compact / HPL Bonded to 18mm MRC / 19mm MR MFC.

FEATURES:
Access Panels on Lift Off Hooks or Locked and Hinged

ENVIRONMENT:
Dry / Moderate Abuse

APPLICATIONS:
Lam-Art duct panel systems provide an extremely versatile solution for washrooms whilst also being easy to clean and maintain by using hinged or removable panels.

DIMENSIONS:
The system is available as full height or to any specified height with a removable lid.

SPECIFICATIONS:

19mm MR MFC or 18mm MR Chipboard Bonded with High Pressure laminate. In wet locations such as shower rooms 13mm Solid Grade Compact Laminate should be used.

Edges can be supplied Post-formed, Edged with 2mm ABS or Edged with Laminate. Panels can be separated with a shadow gap detail or butted together to give a seamless look whilst maintaining access.

PANEL COMPOSITION:
13mm Solid Grade Compact.

FEATURES:
Access Panels on Lift Off Hooks or Locked and Hinged.

IRONMONGERY:
Doc M Pack with Grab Rails.

ENVIRONMENT:
Wet / High Abuse

APPLICATIONS:
Lam-Art duct panel systems provide an extremely versatile solution for washrooms whilst also being easy to clean and maintain by using hinged or removable panels.

DIMENSIONS:
The system is available as full height or to any specified height with a removable lid.

SPECIFICATIONS:

In wet locations such as shower rooms 13mm Solid Grade Compact Laminate should be used throughout.

Panels separated with a shadow gap detail, upper panels can be supplied with concealed hinges and security lock.

PANEL COMPOSITION:
13mm Solid Grade Compact / HPL Bonded to 18mm MRC / 19mm MR MFC.

FEATURES:
Access Panels on Lift Off Hooks or Locked and Hinged.

ENVIRONMENT:
Dry / Moderate Abuse

APPLICATIONS:
Lam-Art duct panel systems provide an extremely versatile solution for washrooms whilst also being easy to clean and maintain by using hinged or removable panels.

DIMENSIONS:
The system is available as full height or to any specified height with a removable lid.

SPECIFICATIONS:

19mm MR MFC or 18mm MR Chipboard Bonded with High Pressure laminate. In wet locations such as shower rooms 13mm Solid Grade Compact Laminate should be used.

Edges can be supplied Post-formed, Edged with 2mm ABS or Edged with Laminate. Panels can be separated with a shadow gap detail or butted together to give a seamless look whilst maintaining access.

PANEL COMPOSITION:
18mm MR Chipboard Bonded with High Pressure laminate

FEATURES:
Access Panels on Lift Off / Push on Clips or Locked and Hinged.

ENVIRONMENT:
Dry / Moderate Abuse

APPLICATIONS:
Lam-Art boxed out duct panel systems are easily secured to any wall and provide easy maintenance by using hinged or removable panels.

DIMENSIONS:
The system is available as full height or to any specified height with a removable lid.

SPECIFICATIONS:
19mm MR MFC or 18mm MR Chipboard Bonded with High Pressure laminate. In wet locations such as shower rooms 13mm Solid Grade Compact Laminate should be used.

Edges can be supplied Post-formed, Edged with 2mm ABS or Edged with Laminate. Panels can be separated with a shadow gap detail or butted together to give a seamless look whilst but still allow access.

PANEL COMPOSITION:
18mm MR Chipboard Bonded with High Pressure laminate

FEATURES:
Access Panels on Lift Off / Push on Clips or Locked and Hinged.

ENVIRONMENT:
Dry / Moderate Abuse

APPLICATIONS:
Lam-Art boxed out duct panel systems are easily secured to any wall and provide easy maintenance by using hinged or removable panels.

DIMENSIONS:
The system is available as full height or to any specified height with a removable lid.

SPECIFICATIONS:

19mm MR MFC or 18mm MR Chipboard Bonded with High Pressure laminate. In wet locations such as shower rooms 13mm Solid Grade Compact Laminate should be used.

Edges can be supplied Post-formed, Edged with 2mm ABS or Edged with Laminate. Panels can be separated with a shadow gap detail or butted together to give a seamless look whilst but still allow access.

PANEL COMPOSITION:
18mm FR Core Bonded with FR Grade HPL and Balancer

FEATURES:
Post-formed Vertical Edges

IRONMONGERY:
Demountable Clip Fixings

ENVIRONMENT:
Dry / Moderate Abuse

APPLICATIONS:

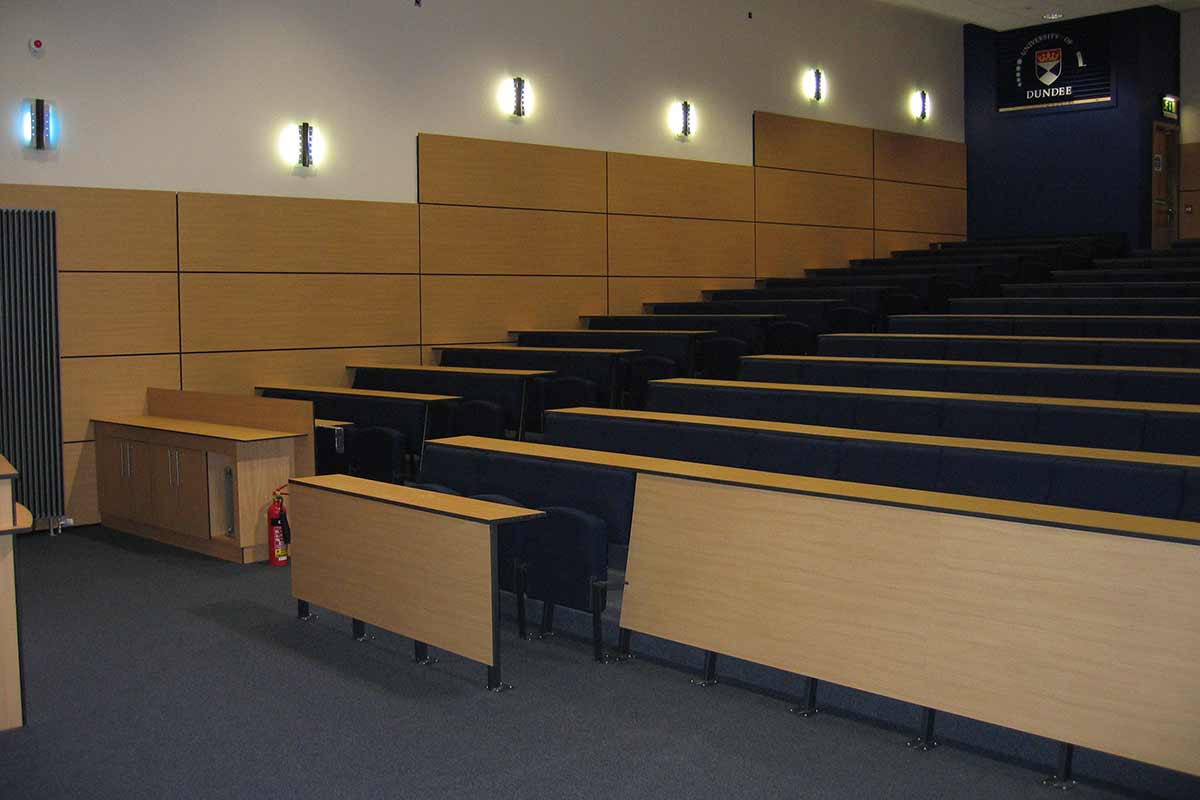

Laminate Wall Panels combined with shadow gap details provide a contemporary, yet economical and robust alternative to traditional wall finishes.

DIMENSIONS:
Manufactured to Specification and Survey Drawings.

SPECIFICATIONS:
Laminate Panels with Horizontal and Vertical Shadow Gap Details or Butt Jointed, 100 x 100 post-formed angles at corners.

Formica VFP FR Post-forming Grade Laminate.

PANEL COMPOSITION:
Solid Grade Compact Laminate

FEATURES:
Polished Black Core Panel Edge.

IRONMONGERY:
Demountable Clip Fixings

ENVIRONMENT:
Dry / Moderate Abuse

APPLICATIONS:
Laminate panels combined with shadow gap details provide a contemporary, yet economical and robust alternative to traditional wall finishes.

DIMENSIONS:
Manufactured to Specification and Design Requirements.

SPECIFICATIONS:
13mm Solid Grade Compact Laminate Panels with Laminate Faced Plywood Horizontal and Vertical Shadow Gap Details.

Sheet: Semi-rigid PVCu sheet

Thickness: 2.5 mmFinish: Satin

Colour: White

Size: 2440 x 1220mm / 2800 x 1220mm / 3050 x 1220mm

Weight: 3.5kg/m²

Max Temp: 60°C

Fire rating: BS 476 Part 7 – Class 1 BS 476 Part 6 – Class 0 (when fixed to a non-combustible substrate) EN13501B-s3, d0

Manufacturer: Bio Clad

Adhesive: Bio Clad 2-part polyurethane adhesive / Bio Clad 1-part water based acrylic

Joints: Matching hot weld / matching 1- or 2-part trims. Fully thermoformable. This specification and subsequent warranties are only binding if a completed copy of the above is acknowledged by Bio Clad. If uncertain with regards to validity, please contact Bio Clad to avoid any ambiguity.
